COMMERCIAL HYDROPONIC GROWING SYSTEM

Black White PVC NFT Hydroponic Channel Lettuce Growing Gutter for Commercial Greenhouse Planting

Virgin PVC NFT hydroponic channel with inner black / outer white dual-color design. 100% light-blocking and anti-algae, ideal for lettuce and leafy greens in commercial soilless planting systems. Thickness 1.8–2.0 mm, lengths 2.9 m / 3 m / 4 m / 5.8 m or customized, full accessories included. MOQ 1,000 meters.

Greenhouse NFT

Strawberry & Leafy Greens

Project Configuration

PVC NFT hydroponic channel with black inner and white outer dual colour
PRODUCT TYPE

PVC NFT hydroponic gully / channel

APPLICATION

Commercial greenhouse hydroponics

SYSTEM OPTIONS

Ground-supported and hanging layouts

PROJECT USE

Farm, distributor and greenhouse project supply

01 / PRODUCT OVERVIEW

Understand the product and buying logic in one section.

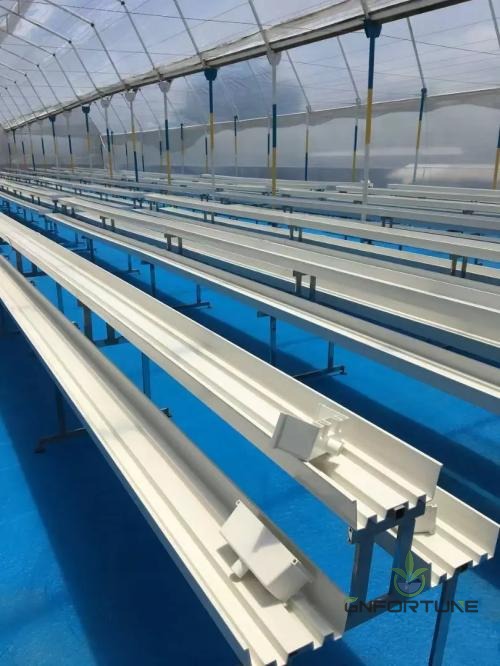

Multi-row PVC NFT hydroponic channel installation inside a commercial greenhouse
01

Channel Structure

Black inside, white outside, so the film runs dark and the channel stays cool.
02

Project Configuration

1.8 mm to 2.0 mm wall, in 2.9 m, 3 m, 4 m or 5.8 m lengths.
03

Crop Compatibility

Lettuce and leafy greens grow with no light reaching the nutrient.
04

Commercial Scale

End caps, outlets, connectors and clips ship with the channel.
02 / TECHNICAL CONFIGURATION

Keep specifications readable instead of burying them inside a long page.

PVC NFT Hydroponic Channel Black/White. This PVC NFT hydroponic channel uses a dual-colour extrusion, black on the inside to block light and white on the outside to reflect heat. As a result, the nutrient film stays dark and cool. At the same time, the profile itself keeps its shape. It is the section we recommend for lettuce and leafy greens where algae control is the priority.

Key Features of the PVC NFT hydroponic channel

  1. PVC NFT hydroponic channel with inner black and outer white dual-colour design.
  2. 100% light blocking interior, which suppresses algae along the whole row.
  3. Food-grade virgin PVC, anti-UV, environmentally friendly, heavy metal free.
  4. 1.8 to 2.0 mm thickness, a rigid profile that stays flat and does not sag.
  5. Suits lettuce and leafy greens, and works with cocopeat or other substrate.
  6. All growing conditions can be controlled, giving stable and high productivity.

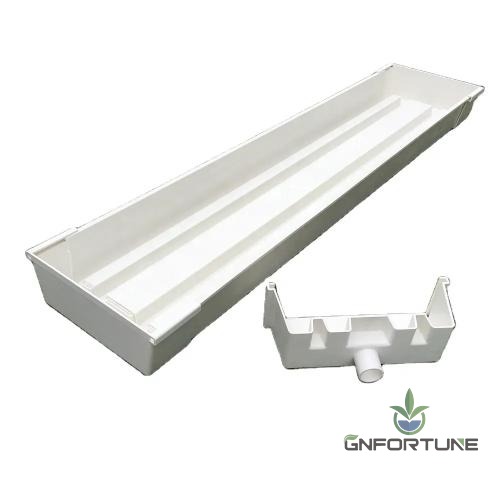

  7. End caps, drain outlets, connectors and support clips included.
  8. Life span of more than 10 years in commercial greenhouse use.

Pvc nft hydroponic channel Specification

Product Name Hydroponics NFT Channel
Usage Lettuce and leafy vegetable growing
Colour Inner black, outer white
Thickness 1.8 – 2.0 mm
Length 2.9 m, 3 m, 4 m, 5.8 m or customized
Material Food grade virgin PVC
Advantage 100% light-blocking, anti-algae, water saving, fertilizer saving
Accessories End caps, drain outlets, connectors, support clips included
Life Span More than 10 years
MOQ 1,000 meters

Where the PVC NFT hydroponic channel is used

The PVC NFT hydroponic channel is used for lettuce, leafy vegetables, herbs and seedling raising in commercial greenhouses and indoor farms. Because the interior is fully light-proof, it suits houses with high light levels and warm nutrient temperatures, where a single-colour channel would green up within a few weeks.

Installation and System Integration

Lay the channel on a levelled frame with a slight fall, connect with the supplied fittings and return the drain to your reservoir. The PVC NFT hydroponic channel can be run as a recirculating system or to waste. Also. This is because it is light-proof it needs far less flushing between crops.

Why Choose GNFORTUNE

GNFORTUNE co-extrudes both colour layers in one pass. As a result, they cannot separate over time. Every PVC NFT hydroponic channel is made from virgin food-grade PVC and certified to RoHS. Also, we ship the matching end caps, connectors and support clips so the row is complete when it arrives. You can read more about the background of this method on Nutrient film technique.

Related Hydroponic Systems

You may also need:

Frequently Asked Questions

Why is the channel two colours?

The black inner layer blocks light so algae cannot grow. At the same time, the white outer layer reflects heat and keeps the nutrient solution cooler.

Can it be used with substrate?

Yes. The channel can be run bare for NFT or filled with cocopeat or another substrate, which also saves land compared with soil beds.

What accessories come with it?

End caps, drain outlets, connectors and support clips are all included with the channel.

03 / PRODUCT DETAILS

Group product close-ups into buyer-relevant technical points.

PVC NFT growing channel with planting holes for lettuce and leafy greens

Channel Profile

Co-extruded dual colour gives a light-blocking inner skin on a UV-stable white shell.

Connection & Support

No light inside means no algae bloom on the film or along the channel walls.

Planting Layout

Fittings match the profile, so a row closes and drains without adapters.

Growing Application

Food-grade virgin PVC, RoHS listed, ten years plus of cropping.
04 / COMMERCIAL APPLICATIONS

Let real greenhouse installations prove the application.

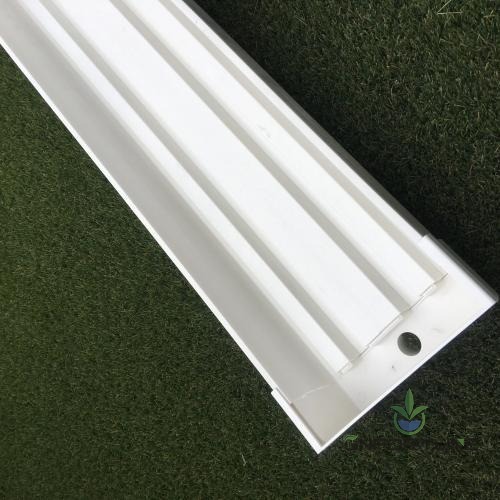

Black inner and white outer PVC NFT channel profile with anti-algae design

Lettuce Production

Commercial lettuce houses on long benches.

Leafy Green Production

Leafy and herb growers fighting algae in warm houses.

Multi-row Greenhouse Projects

Projects replacing clear channels with a light-blocking profile.
05 / SYSTEM OPTIONS

Turn stand and hanging photos into clear configuration choices.

OPTION 01

Ground-Supported Rows

For greenhouse rows using galvanized support frames and adjustable channel layouts.
OPTION 02

Hanging / Suspended Layout

For elevated growing systems where floor access and crop management are important.
OPTION 03

Custom Project Layout

For projects that need coordinated channel length, slope and greenhouse-row planning.

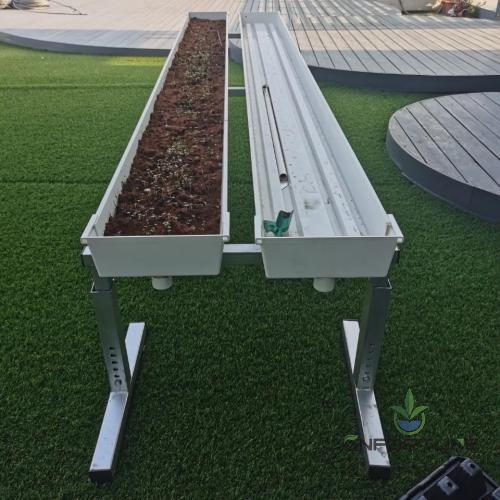

PVC growing channel mounted on a support stand with substrate and plants

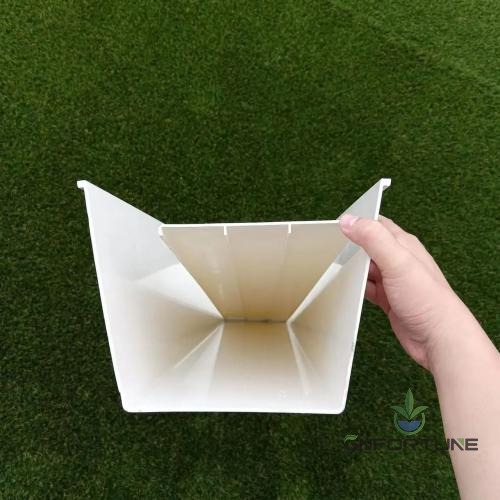

Hand holding the rigid virgin PVC NFT channel profile showing wall thickness
06 / PACKING & DELIVERY

Keep logistics practical, visual and concise.

✓ Protected Bundling
Show how channels are stacked and protected before shipment.

✓ Container Loading
Add verified loading quantity and packing data when confirmed.

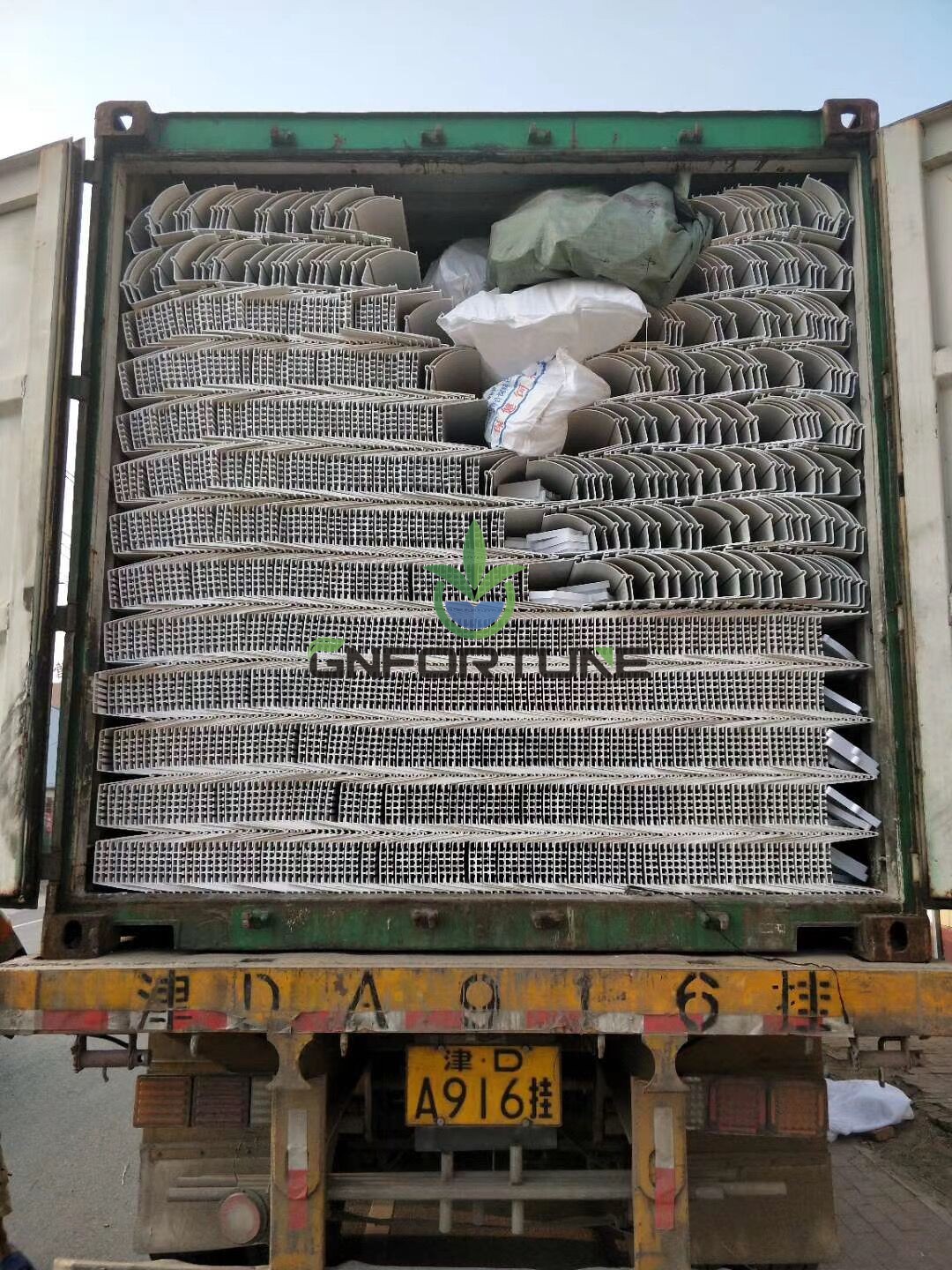

✓ Project Shipment
Explain project-based packing only when the supplier confirms the service.

07 / TRUST & CERTIFICATION

Product Certifications & Quality Assurance

Review available documentation and certification records to support your technical evaluation and purchasing decisions.

Product Documentation

Review relevant documents for your product and project requirements.

Quality Assurance

Request supporting information for your procurement review.

Document Verification

Contact our team to confirm document scope and applicability.

08 / BUYER FAQ

Questions buyers usually need answered before requesting a quote.

What crops are shown with this NFT gully?

The supplied product page shows strawberry and leafy-green greenhouse applications. Final planting spacing and layout should be confirmed for the specific crop and project.

Can the support system use different installation methods?

The supplied page shows both galvanized support stands and hanging greenhouse layouts. The final support configuration should be matched to the greenhouse structure.

Is this page intended for commercial greenhouse buyers?

The source material includes multi-row greenhouse installations and project photographs, so the redesigned page is structured around commercial and project-based buying decisions.

What information should be prepared for an RFQ?

For a useful project discussion, prepare the crop type, greenhouse dimensions, preferred row layout and any confirmed channel or support requirements.
